A20-TX

Digital Wireless Bodypack Transmitter with GainForward and SpectraBand

Overview

Finding a tool that can serve multiple purposes is the goal of every audio professional. More flexible gear means less — less for you to carry in a bag or fit in a case, and less gear to rent for a gig. That’s the philosophy behind the A20-TX digital wireless transmitter. We engineered it to be compatible with more input sources than any other transmitter, including two- or three-wire lavs, dynamic mics, phantom-powered condenser mics, guitars, balanced line-level sources, and even AES digital mics. The A20-TX transmitter’s multipurpose input saves you from having to pack or rent more transmitters.

• Worldwide VHF and UHF tuning range from 169 MHz-1525 MHz
• Up to 12 hours battery runtime
• Eco-friendly operation from rechargeable Lithium batteries or from standard AA batteries
• Built-in battery charger via USB-C
• Full remote control of the A20-TX via A20-Remote companion app and from A20-Nexus and A20-Nexus Go via long-range NexLink
• State-of-the-art 100% digital long-range modulation delivers the longest transmission distance of any system on the market
• RF Power output from 2 mW to 40 mW

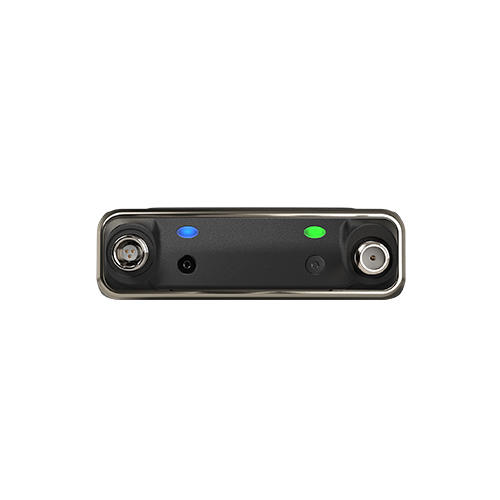

• Lemo input supports 2-wire or 3-wire mono lav, balanced mic, switchable 12, 48V phantom, balanced line-level, AES3, AES42 (compatible with Schoeps SuperCMIT), and guitar (w/ optional Smart Guitar Cable)
• GainForward Architecture – no gain control to worry about on the A20-TX
• Full 10 Hz – 20 kHz audio bandwidth
• 8-Series, fully balanced mic preamp built in (140 dB dynamic range)
• Ultra-quiet lavalier mic preamp (130+ dB dynamic range)
• Built-in 32-bit float, 48 kHz recorder with removable micro-SD card
• Ultra-stable timecode built in, auto jammed via wireless NexLink

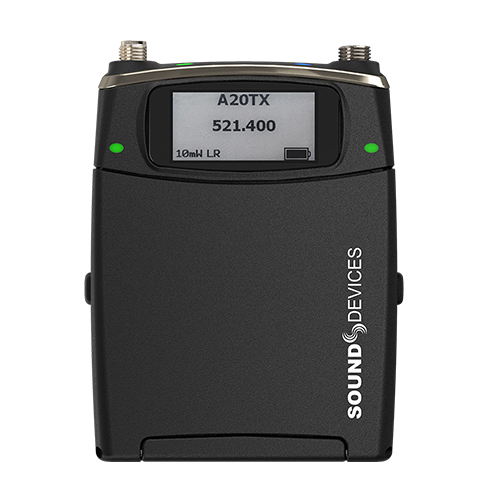

• Sunlight-readable e-Paper screen for control and display. Display persists when powered off

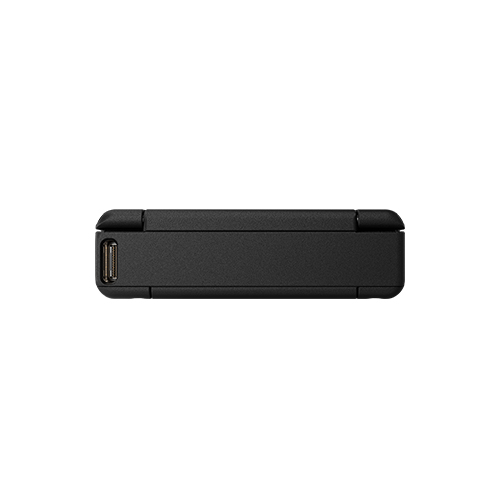

• USB-C for pairing with the A20-Nexus, file offload, charging, and timecode jamming
• A20-TX Switch: Optional user-programmable bayonet switch, magnetically sensed and physically removable
